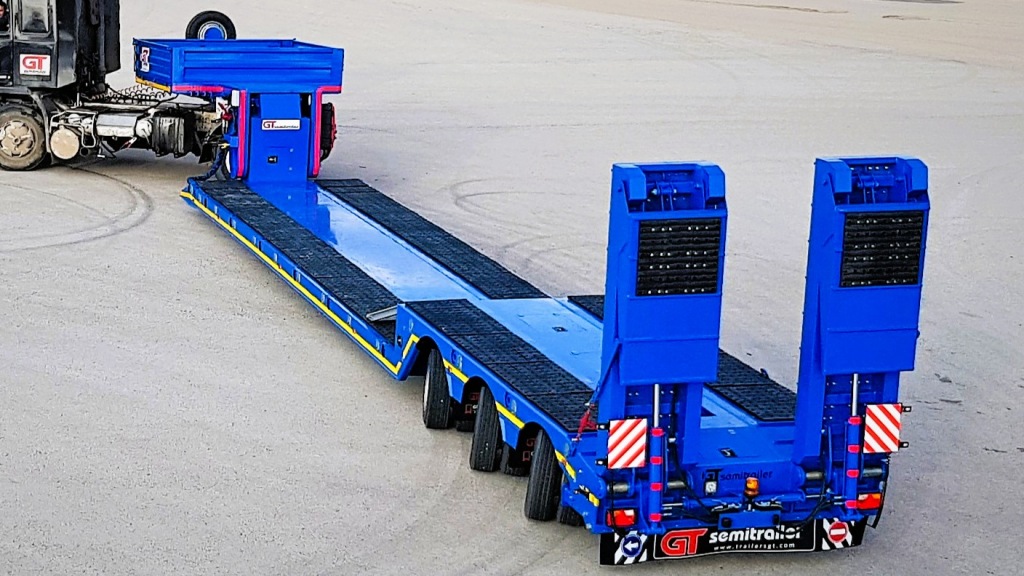

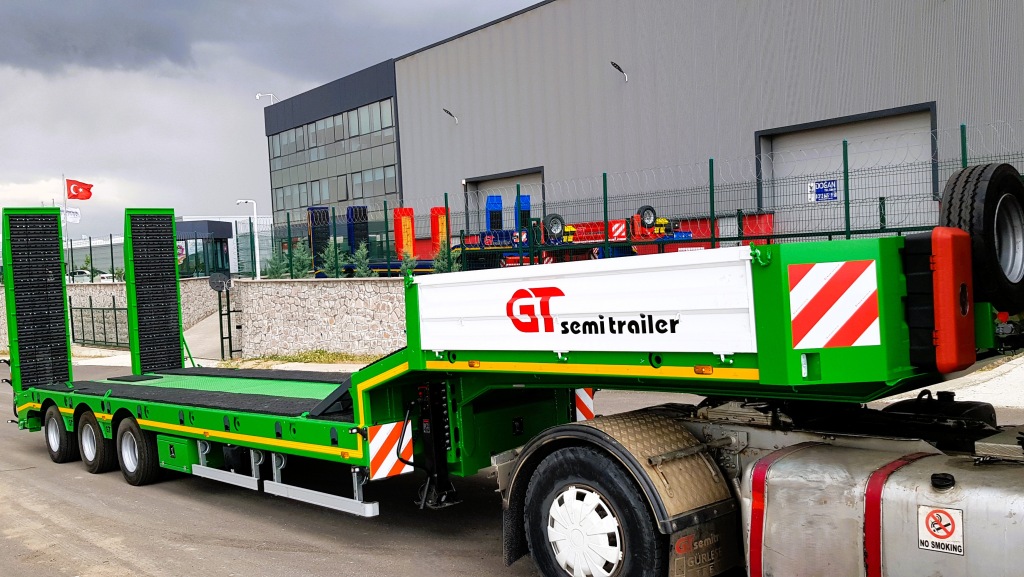

3 Axle Low Loader

Capacity

• 45.000 Kg (Max) (for air suspension)
  “Note: If you want group of 3 tandem system capacity it can to be 70.000 kg (max) for one machine

Type

• (GLY3) 3 Axle Low bed Semi-Trailer (Step Frame Trailer, platform semi trailer)
  (Option: Extendable)

Weight

• 10500 Kg – 15000 Kg

Axle Unit

• 3 Units

Tire Unit And Dimension

• 12 units “235/75 R 17,5” or “295 /60 R 22,5” according to load capacity.

Undirvagn

• Low bed Semi-trailer has been produced in welding constructions with gas metal arc welding as “I” crossing from high resistant steel considering overloads proper to capacity and intended usage.

Axles

• 3×12 tons or 3×14 tons capacity is air suspansion, axle is flat scissors from under, down and ups is lifting, amortisor is support. Brand is optionel.

Brake

• Brakes system is used according to the standards EEC 97/12, double-circuit pneumatic, EBS, WABCO is brand.

3 Axle Lowbed Semi-Trailer Dimensions:

Platform Lenght

• 8500 mm with 10500 mm it depends on customer varies depending on intended usage.
  (Option: Extension 4000 mm – 7000 mm)

Total Lenght

• 12300 mm – 14300 mm.

Width

• 2550 mm – 3300 mm varies according to demand.

Platform Height

• Low bed semi-trailer according transport generally 900 mm between 1050 mm.

Electric Installation

• The used Installation materials conform to the EEC 24 Certified European norms.

Loading Ramps

• Optionel, pneumatic or hydrualic system

Platform Materials

• Top of the platform is ¾ diamond-embossed and sides are “KTM (Rubber Base Material)”. Over platform 8 mm is plain sheet for work machina bucket and from lower is support.

Paint

• The desired color of Acrylic paint is used as top coat over two layered epoxy primer.

King Pin

• 2″or 3,5″ flanged bolts, resistant to high degrees of tension brakes, produced from forged steel. Easy to change thanks to screw connections. E Certified.
